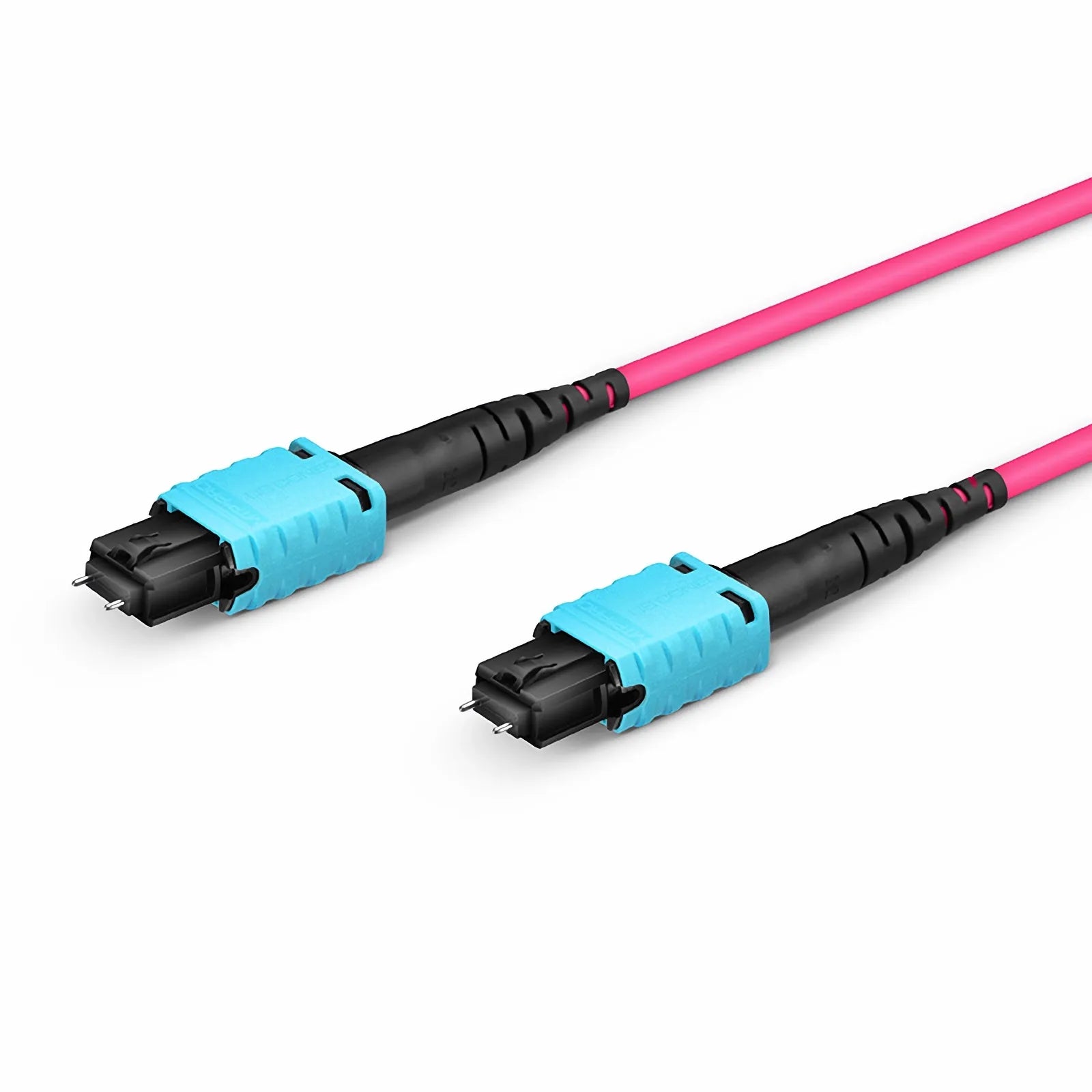

MTP® PRO Jumper, MTP® PRO-12 UPC (Male) to MTP® PRO-12 UPC (Male), 12 Fibers, Multimode (OM4), Plenum (OFNP), 0.35dB Max, Type B
MTP® PRO Jumper, MTP® PRO-12 UPC (Male) to MTP® PRO-12 UPC (Male), 12 Fibers, Multimode (OM4), Plenum (OFNP), 0.35dB Max, Type B
MTP® PRO Jumper, MTP® PRO-12 UPC (Male) to MTP® PRO-12 UPC (Male), 12 Fibers, Multimode (OM4), Plenum (OFNP), 0.35dB Max, Type B
MTP® PRO Jumper, MTP® PRO-12 UPC (Male) to MTP® PRO-12 UPC (Male), 12 Fibers, Multimode (OM4), Plenum (OFNP), 0.35dB Max, Type B
MTP® PRO Jumper, MTP® PRO-12 UPC (Male) to MTP® PRO-12 UPC (Male), 12 Fibers, Multimode (OM4), Plenum (OFNP), 0.35dB Max, Type B
MTP® PRO Jumper, MTP® PRO-12 UPC (Male) to MTP® PRO-12 UPC (Male), 12 Fibers, Multimode (OM4), Plenum (OFNP), 0.35dB Max, Type B
MTP® PRO Jumper, MTP® PRO-12 UPC (Male) to MTP® PRO-12 UPC (Male), 12 Fibers, Multimode (OM4), Plenum (OFNP), 0.35dB Max, Type B
MTP® PRO Jumper, MTP® PRO-12 UPC (Male) to MTP® PRO-12 UPC (Male), 12 Fibers, Multimode (OM4), Plenum (OFNP), 0.35dB Max, Type B
MTP® PRO Jumper, MTP® PRO-12 UPC (Male) to MTP® PRO-12 UPC (Male), 12 Fibers, Multimode (OM4), Plenum (OFNP), 0.35dB Max, Type B
MTP® PRO Jumper, MTP® PRO-12 UPC (Male) to MTP® PRO-12 UPC (Male), 12 Fibers, Multimode (OM4), Plenum (OFNP), 0.35dB Max, Type B

MTP® PRO Jumper, MTP® PRO-12 UPC (Male) to MTP® PRO-12 UPC (Male), 12 Fibers, Multimode (OM4), Plenum (OFNP), 0.35dB Max, Type B

ecom-no-replace-vjYNeAZFqNrrate-electric
(100+ ratings)
  • ecom-no-replace-gudI16uWLKflash0i

    Selling fast! 10 people have this in their carts.

$99.00
{price}% OFF
Order in the next [hour] to get it between [date_start] and [date_end]
Length
  • 2m(7ft)
  • 10m(33ft)
Series
  • MTP PRO-12 to MTP PRO-12 UPC | OM4
  • MTP PRO-12 to MTP PRO-12 APC | OS2
Start-EComposer-custom-liquid-pickup
End-EComposer-custom-liquid-pickup
Returns & Exchanges Policy
When you buy directly from us, we want you to be 100% happy with your purchase experience. We hope you love everything you receive from us, but if you’re less than 100% satisfied, you may return or exchange any item(s) within 30 days after your purchase. Please a contact customer service team member if your order is unsatisfactory or doesn’t suit your needs. We want to make it right for you, as quickly and easily as possible
  • Step 1
    Fill out the return info on the back of your order form. Can’t find your order form? Download a copy of the return form. Want to exchange it for a different product? Let us know within 30 days of your purchase.
  • Step 2
    Return the order yourself via USPS, FedEx or any other traceable method. We encourage you to insure your package. Please send it to: Gaiam Attention: Returns 9107 Meridian Way, West Chester, OH 45069
Please allow 14 days for us to receive and process your return. Original shipping and handling fees are not refundable. We'll credit or refund the value of the items returned and any taxes you were charged less the original shipping charges. Please contact Customer Relations for more information regarding our return policies. Credit card adjustments should appear within two billing cycles.

  • Guarantee Safe
    Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Pairs well with

Description

Specifications

Shipping

Return Policies

Product Highlights

  • US Conec MTP® Connector with Optimal 0.35dB Low IL
  • Bend Insensitive Fiber with 7.5mm Min. Bend Radius
  • OFNP Fire Safety-Rated for Use in Plenum Air Spaces
  • Color-Coded Connector Boots for Easy Identification
  • Allow for Pinning and Polarity Changing in the Field
  • Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D



MTP® PRO-12 Jumper, M to M, UPC, 12F, OM4, OFNP, 0.35dB, Type B

MTP® jumpers, allow for the seamless migration to higher data rates in the data center when used in conjunction with our trunk cables. They are typically used for patching within a cabinet. MTP® cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

MTP® PRO design is focused on simplicity and reliability, ensuring a quick and effective method for polarity and pin configuration without the need to remove the housing or handle loose pins. One simple insertion into a specially designed MTP® PRO tool reverses the keying configuration by retracting the exposed key while extracting a hidden key on the opposite side of the connector.



Specifications

Connector A US Conec MTP® PRO Male (Pinned)
Connector B US Conec MTP® PRO Male (Pinned)
Polish Type UPC to UPC
Glass Fiber Bend Insensitive Fiber
Fiber Mode OM4 50/125μm
Wavelength 850/1300nm
Fiber Countc
Fiber Count
Polarity Type B
Min. Bend Radius  7.5mm
Cable Outside Diameter (OD)
3.0mm
Cable Jacket
Plenum (OFNP)
Tensile Strength 80/240N (Long/Short Term)
Insertion Loss
≤0.35dB (0.15dB Typ.)
Return Loss
≥20dB
Attenuation at 850nm ≤2.3dB/km
Attenuation at 1300nm ≤0.6dB/km
Operating Temperature -10 to +70°C (14 to 158℉)
Storage Temperature
-10 to 70°C (14 to 158℉)



Features

Seamless Migration to Higher Data Rates

Each cable is meticulously coiled and ready for deployment, designed to deliver consistent high-speed data transmission.

Bend insensitive fiber delivers superior macrobending and bandwidth performance to withstand tight bends.

High-performance MT-based US Conec MTP® connector for data center and carrier-grade applications.

Plenum Jacket, The Highest Fire Safety-Rated

The OFNP (plenum) jacket is safe for plenum air spaces and compatible with both unrated and OFNR (riser) rated applications.




High Density Cabling for Various Environments
Minimize waste, optimize cable management, and speed deployment for lower installation costs.


Meet Your Polarity Reversal Needs
Only 4 steps to switch the polarity from type A to type B and vice versa in seconds.
Insert pinned MTP PRO Connector in the Pin Change Port until audible "CLICK".
Align and insert Pin Exchanger on the opposite end of the Pin Change Port.
Slide the Gripper onto the Pin Exchanger. Compress the black handles.
Polarity Changed from Black Key exposed to off White Key exposed.

Specifications

HEADING 1HEADING 2
Connector AUS Conec MTP® Elite Female (Non-Pinned)
Connector BUS Conec MTP® Elite Female (Non-Pinned)
Polish TypeUPC to UPC
Glass FiberBend Insensitive Fiber
Fiber ModeOM5 50/125μm
Wavelength850/1300nm
Fiber Count12 Fibers
PolarityType B
Cable Outside Diameter (OD)3.0mm
Cable JacketPlenum (OFNP)
Min. Bend Radius (Optical Fiber)7.5mm
Min. Bend Radius (Fiber Cable)20/10D (Dynamic/Static)
Connector Durability500 times
Tensile Strength80/240N (Long/Short Term)
Insertion Loss≤0.35dB (0.15dB Typ.)
Return Loss≥27dB
Attenuation at 850nm≤2.3dB/km
Attenuation at 1300nm≤0.6dB/km
Operating Temperature-10 to 60°C (14 to 140℉)
Storage Temperature-10 to 70°C (14 to 158℉)
