MTP® Harness, MTP®-8 APC (Female) to 4 MDC UPC Duplex, 8 Fibers, Single Mode (OS2), Plenum (OFNP), 0.35dB Max, Type B

MTP® Harness, MTP®-8 APC (Female) to 4 MDC UPC Duplex, 8 Fibers, Single Mode (OS2), Plenum (OFNP), 0.35dB Max, Type B

ecom-no-replace-vjYNeAZFqNrrate-electric

(100+ ratings)

Selling fast! 10 people have this in their carts.

$149.00

{price}% OFF

Order in the next [hour] to get it between [date_start] and [date_end]

Length

1m(3ft)
1.5m(5ft)
2m(7ft)
3m(10ft)
4m(13ft)
5m(16ft)
6m(20ft)
7m(23ft)
8m(26ft)
9m(30ft)
10m(33ft)
12m(39ft)
15m(49ft)
20m(66ft)
25m(82ft)
30m(98ft)
35m(115ft)
40m(131ft)
50m(164ft)
100m(328ft)

Length

Quantity

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Pairs well with

Product Highlights

US Conec MTP® Connector with Optimal 0.35dB Low IL
G.657.A1 Bend Insensitive Fiber with 10mm Min. Bend Radius
3x Fiber Cabling Density over LC Connectors
Directconec™ Boot for Easy Insertion and Extraction
A/B Polarity Easy and Secure, Toolless Changeable
Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D

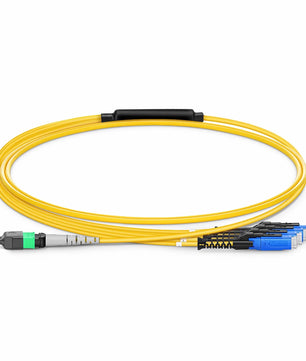

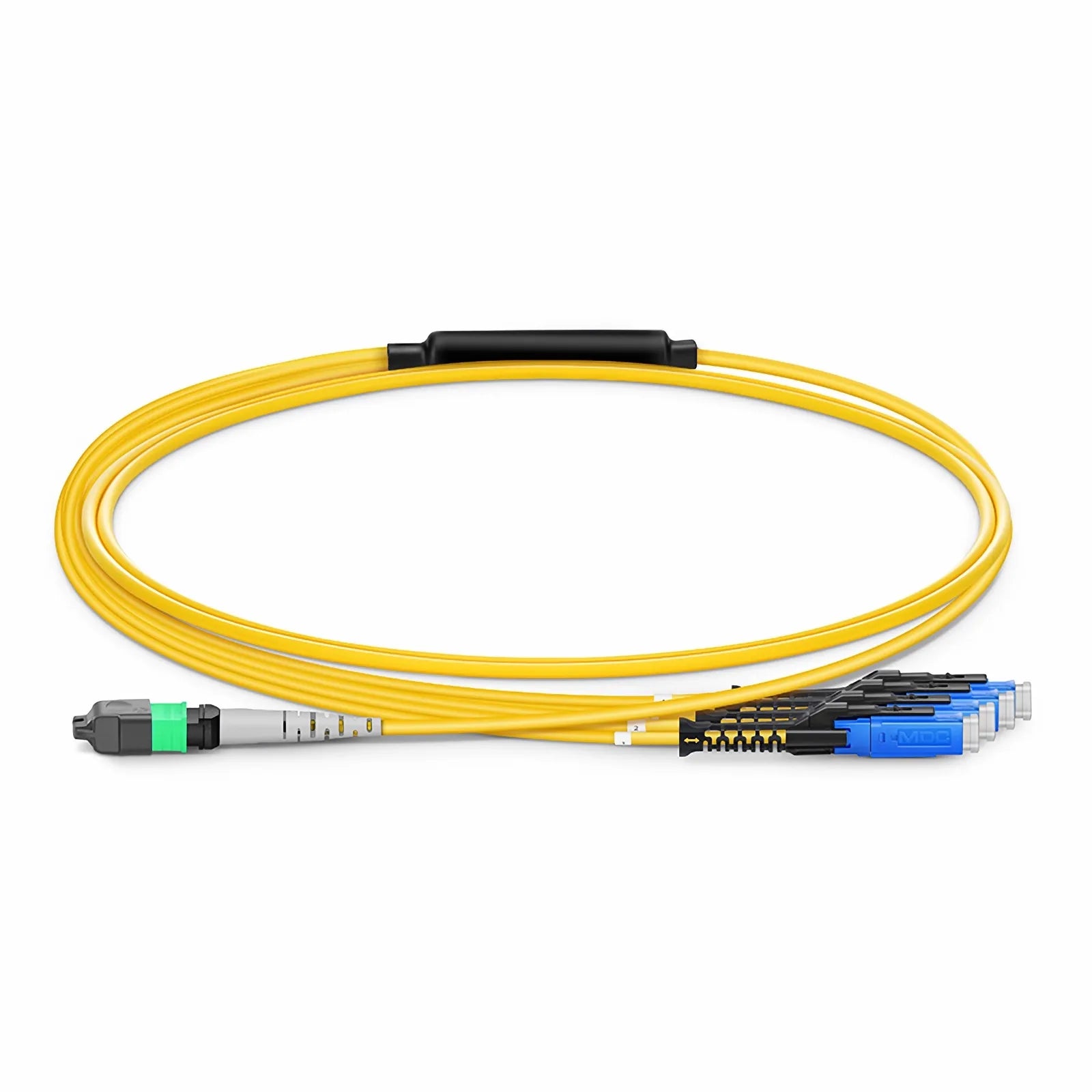

MTP®-8 F to MDC Harness, 8F, OS2, OFNP, 0.35dB, Type B

The MTP® harnesses provide breakout from MTP®-8 connectors to 4 MDC duplex connectors, whose assemblies are factory terminated and tested to deliver verified optical performance and reliability for improved network integrity.

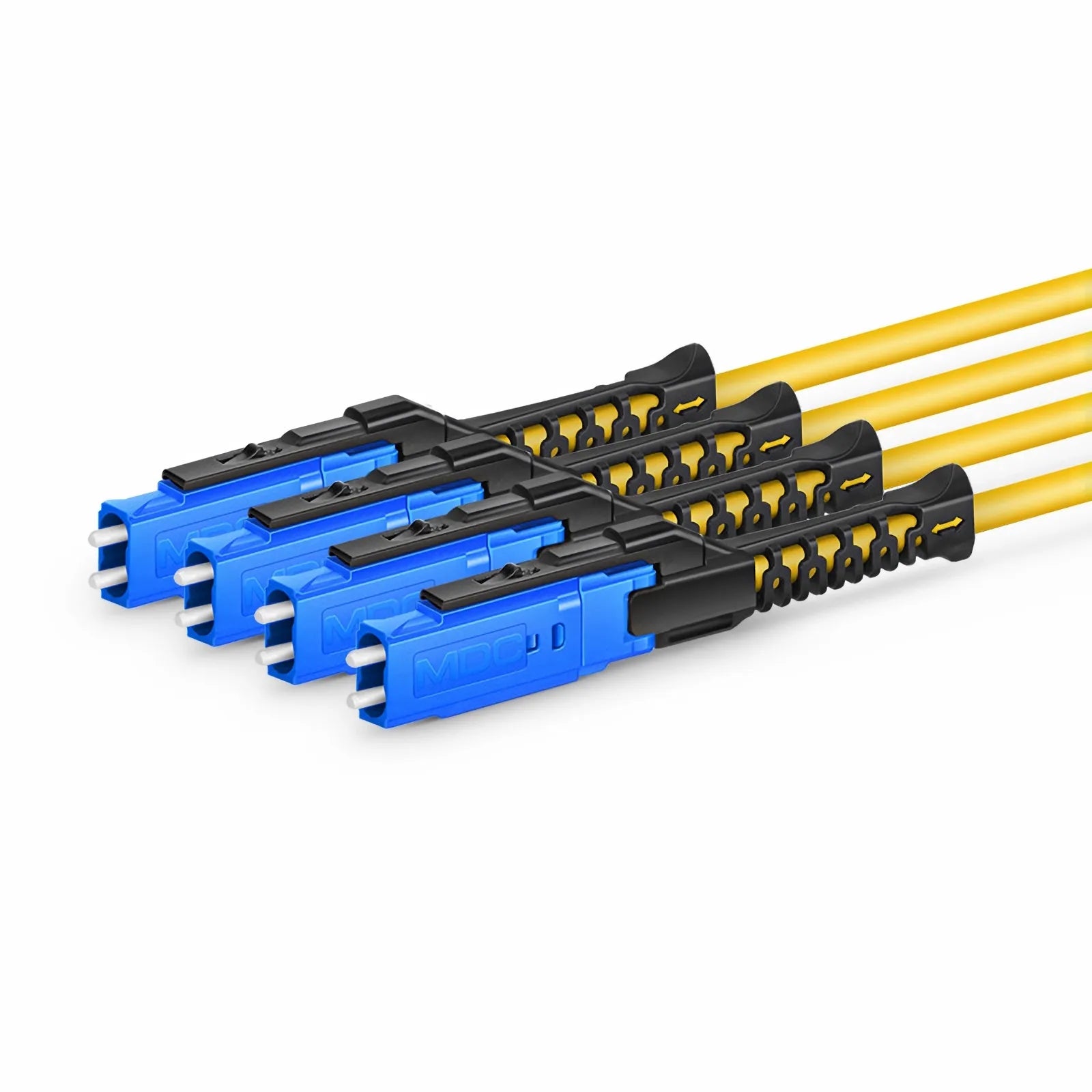

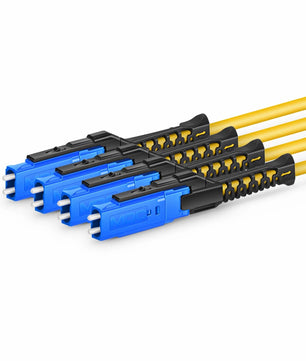

US Conec's ELiMENT® MDC connector is a Very Small Form Factor (VSFF) duplex optical connector designed for termination of multi-mode and singlemode fiber cables up to 2.0mm in diameter. The MDC connector is manufactured with proven 1.25mm ferrule technology used in industry standard LC optical connectors. Individual connector access in the most extremely dense connector environments is easily accomplished using the revolutionary DirectConec™ push-pull boot technology. MTP® to MDC breakout cable enables one QSFP-DD, QSFP28 or QSFP+ transceiver to be connected to MDC patch panels or cassettes.

Specifications

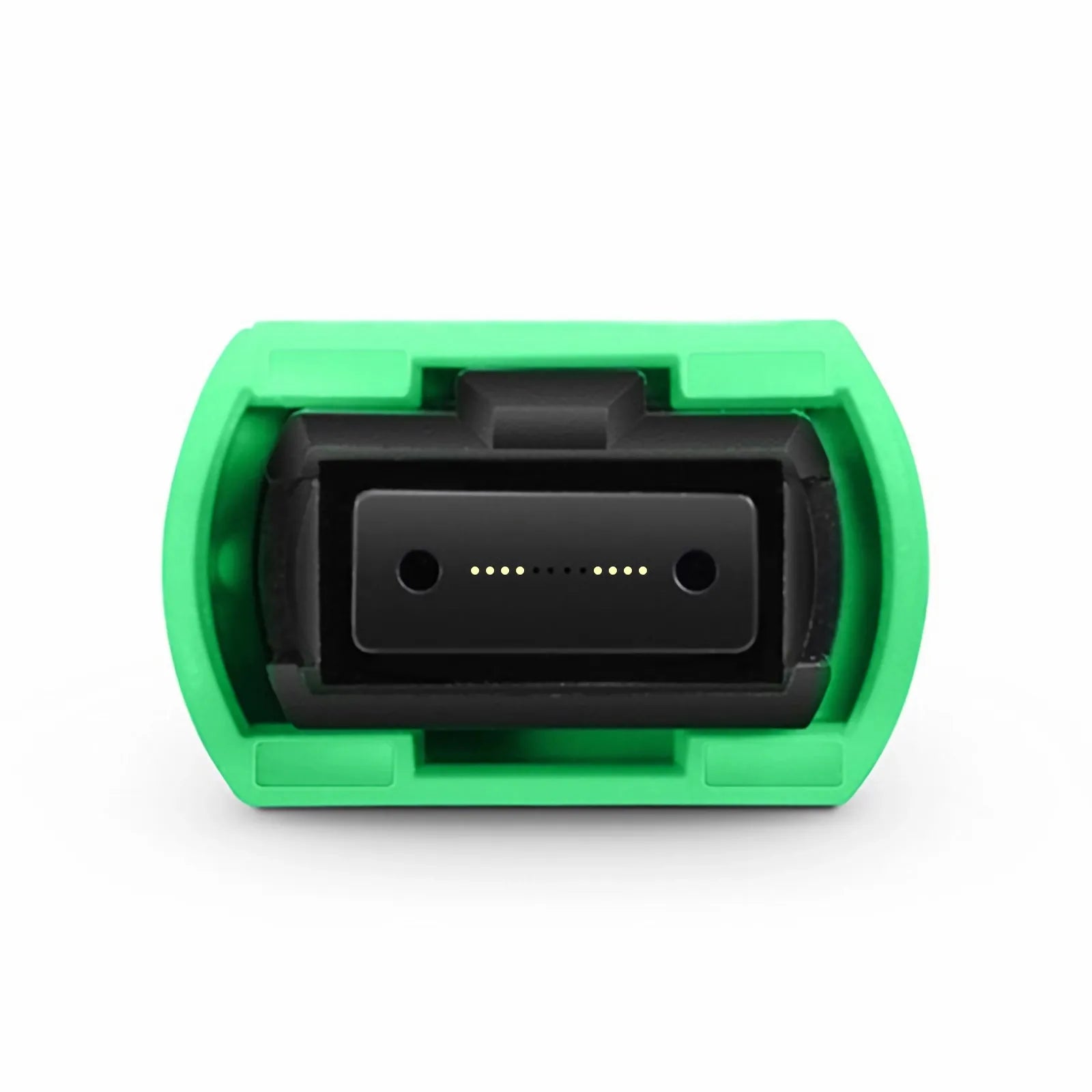

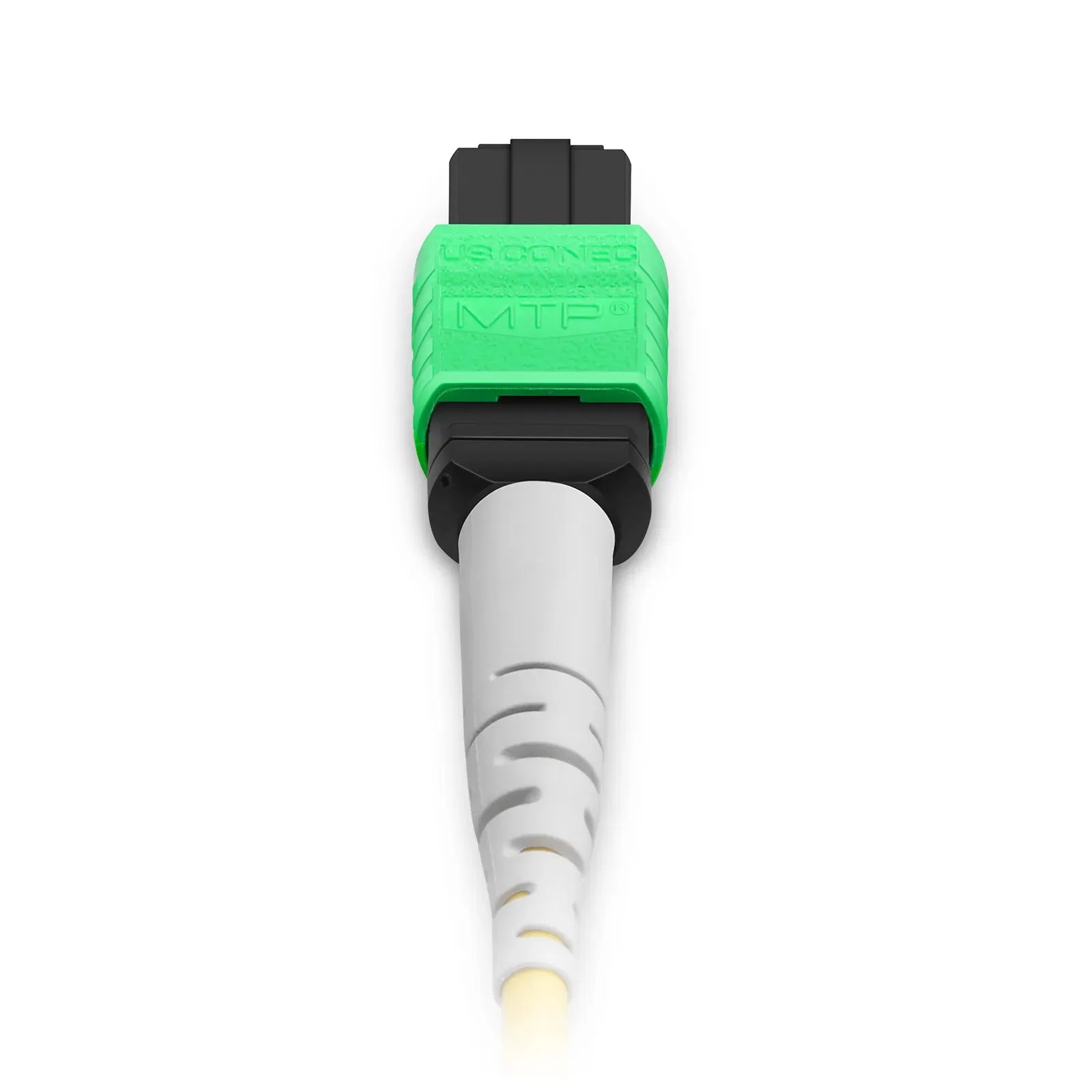

Connector A	US Conec MTP® Elite Female (Non-Pinned)
Connector B	US Conec MDC UPC
Glass Fiber	G.657.A1c
Fiber Count	8 Fibers
Fiber Mode	G.657.A1
Wavelength	850/1300nm
MTP Connector IL	≤0.35dB (0.15dB Typ.)
MTP Connector RL	≥60dB
MDC Connector IL	≤0.3dB
MDC Connector RL	≥50dB
Min. Bend Radius (Optical Fiber)	7.5mm
Min. Bend Radius (Fiber Cable)	20/10D (Dynamic/Static)

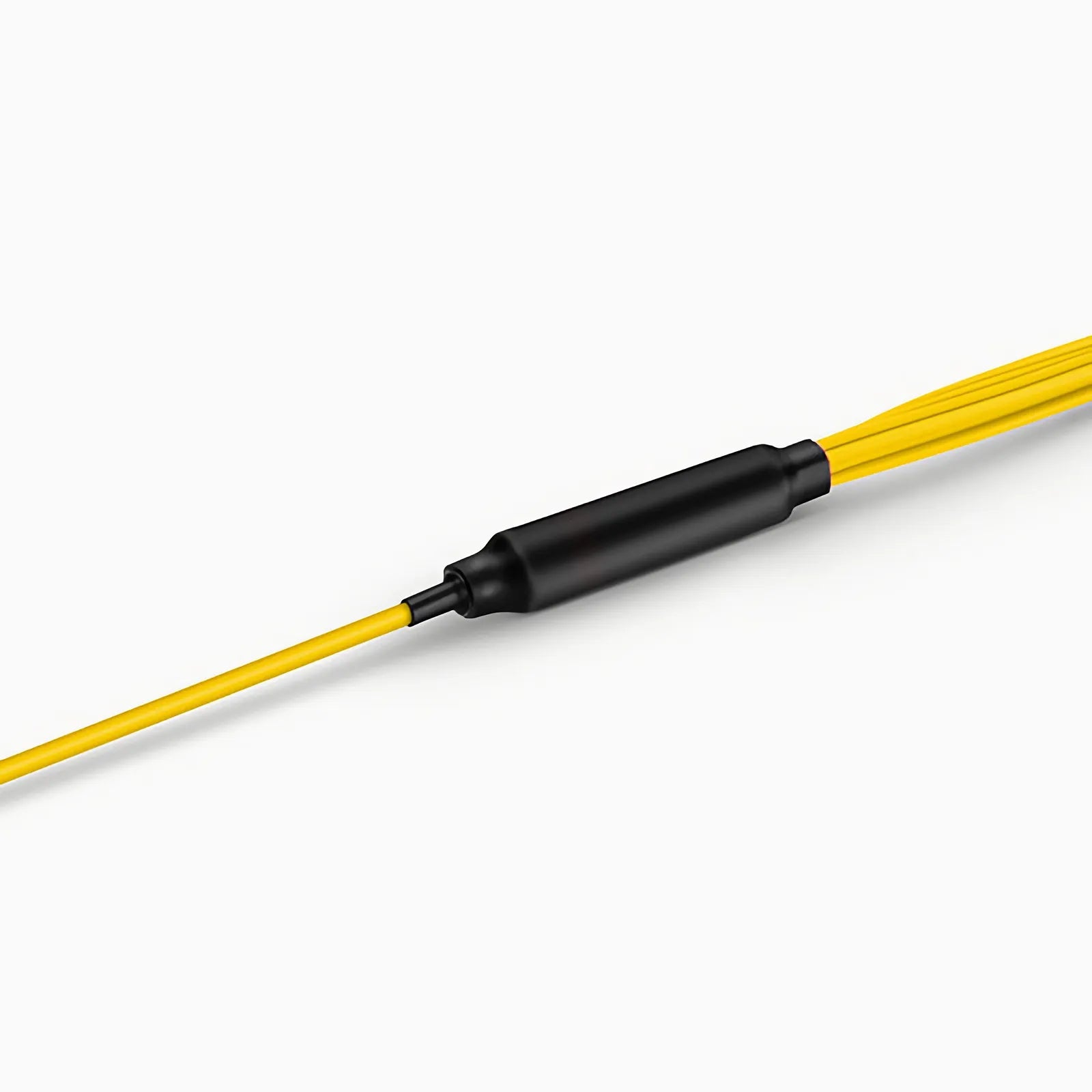

Breakout Length	0.5m
Tensile Strength	80/240N (Long/Short Term)
Insertion Loss	≤0.35dB (0.15dB Typ.)
Return Loss	≥45dB
Attenuation at 850nm	≤2.3dB/km
Attenuation at 1300nm	≤0.6dB/km
Operating Temperature	-10 to 60°C (14 to 140℉)
Storage Temperature	-10 to 70°C (14 to 158℉)

Features

Enabling 400G and 200G Connectivity

It simplifies the insertion of individual connectors into various switches from 400G to 4x100G.

10/5D Min. Bend Radius	10/5D Min. Bend Radius	For Breakout Application
The G.657.A1 BIF fiber allows tighter cable bends for slack storage and routing.	Offers the same low losses as Low Loss LC duplex connectors.	Designed for breakout application in QSFP-DD, SFP-DD and OSFP optical transceivers.

3x Fiber Cabling Density over LC Connectors

Three port MDC adapters fit directly into standard panel openings for duplex LC adapters.

Quick and Simple Polarity Reversal

The polarity reversal is effortless and does not expose or twist delicate fibers during the process.

Simplify the Network Upgrade with a Plug-in

MTP®-MDC harness cable allows for Fast Data Rate Upgrade such as 100G to 400G migration.

Specifications

HEADING 1	HEADING 2
Connector A	US Conec MTP® Elite Female (Non-Pinned)
Connector B	US Conec MTP® Elite Female (Non-Pinned)
Polish Type	UPC to UPC
Glass Fiber	Bend Insensitive Fiber
Fiber Mode	OM5 50/125μm
Wavelength	850/1300nm
Fiber Count	12 Fibers
Polarity	Type B
Cable Outside Diameter (OD)	3.0mm
Cable Jacket	Plenum (OFNP)
Min. Bend Radius (Optical Fiber)	7.5mm
Min. Bend Radius (Fiber Cable)	20/10D (Dynamic/Static)
Connector Durability	500 times
Tensile Strength	80/240N (Long/Short Term)
Insertion Loss	≤0.35dB (0.15dB Typ.)
Return Loss	≥27dB
Attenuation at 850nm	≤2.3dB/km
Attenuation at 1300nm	≤0.6dB/km
Operating Temperature	-10 to 60°C (14 to 140℉)
Storage Temperature	-10 to 70°C (14 to 158℉)
