ecom-no-replace-vjYNeAZFqNrrate-electric
(100+ ratings)
  • ecom-no-replace-gudI16uWLKflash0i

    Selling fast! 10 people have this in their carts.

$43.00
{price}% OFF
Order in the next [hour] to get it between [date_start] and [date_end]
Length
  • 1m(3ft)
  • 1.5m(5ft)
  • 2m(7ft)
  • 3m(10ft)
  • 4m(13ft)
  • 5m(16ft)
  • 6m(20ft)
  • 7m(23ft)
  • 8m(26ft)
  • 9m(30ft)
  • 10m(33ft)
  • 12m(39ft)
  • 15m(49ft)
  • 20m(66ft)
  • 25m(82ft)
  • 30m(98ft)
  • 35m(115ft)
  • 40m(131ft)
  • 50m(164ft)
  • 100m(328ft)
  • 150m(492ft)
Series
  • MTP-12 to MTP-12 APC | OM4 | OFNP
  • MTP-12 to MTP-12 APC | OS2 | OFNP
  • MTP-12 to MTP-12 APC | OM4 | OFNP/LSZH
  • MTP-12 to MTP-12 APC | OM3 | OFNP/LSZH
  • MTP-12 to MTP-12 APC | OS2 | OFNP/LSZH
Start-EComposer-custom-liquid-pickup
End-EComposer-custom-liquid-pickup
Returns & Exchanges Policy
When you buy directly from us, we want you to be 100% happy with your purchase experience. We hope you love everything you receive from us, but if you’re less than 100% satisfied, you may return or exchange any item(s) within 30 days after your purchase. Please a contact customer service team member if your order is unsatisfactory or doesn’t suit your needs. We want to make it right for you, as quickly and easily as possible
  • Step 1
    Fill out the return info on the back of your order form. Can’t find your order form? Download a copy of the return form. Want to exchange it for a different product? Let us know within 30 days of your purchase.
  • Step 2
    Return the order yourself via USPS, FedEx or any other traceable method. We encourage you to insure your package. Please send it to: Gaiam Attention: Returns 9107 Meridian Way, West Chester, OH 45069
Please allow 14 days for us to receive and process your return. Original shipping and handling fees are not refundable. We'll credit or refund the value of the items returned and any taxes you were charged less the original shipping charges. Please contact Customer Relations for more information regarding our return policies. Credit card adjustments should appear within two billing cycles.

  • Guarantee Safe
    Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Pairs well with

Description

Specifications

Shipping

Return Policies

Product Highlights

  • US Conec MTP® Connector with Optimal 0.35dB Low IL
  • Bend Insensitive Fiber with 7.5mm Min. Bend Radius
  • 8° APC Endface Minimizes Optical Reflections to Improve Signal Quality
  • OFNP Fire Safety-Rated for Use in Plenum Air Spaces
  • Designed for Linking Twin-port OSFP and Single-port OSFP and QSFP112 High-Speed Transceivers
  • Provide Scalable and Manageable Fiber Cabling in High-Density AI Cluster Networks
  • Support End-to-End Fiber Solutions for both Ethernet and InfiniBand
  • Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D

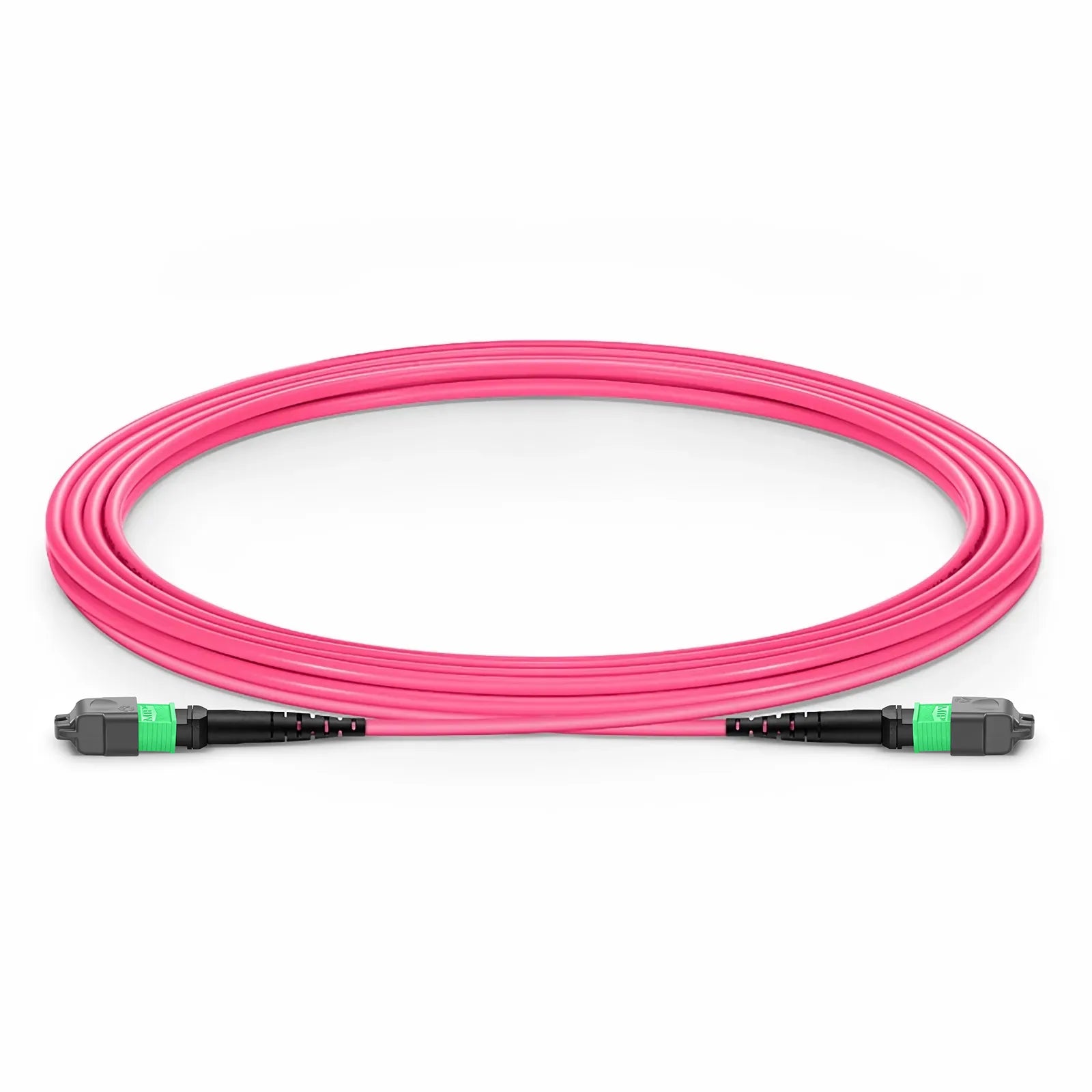

MTP®-12 Jumper, F to F, APC, 8F, OM4, OFNP, 0.35dB, Type B

The MTP®-12 APC (Female) OM4 cable uses 8 active fibers to transmit light and 4 inactive fibers as strength members. The APC end has an 8-degree polished angle to deflect internal optical back reflections from entering the transceiver and distorting the signal quality.

It is designed for linking InfiniBand and Ethernet multimode twin-port OSFP and single-port OSFP and QSFP112 transceivers together in data center high-speed fiber links. The typical use case is linking twin port OSFP switches to each other, and to ConnectX-7® network adapters or BlueField-3® Data Processing Units (DPUs) in computing and storage servers. It also accommodates in-band and out-of-band management networks, ensuring comprehensive connectivity across AI data center fabrics.



Specifications

Connector A US Conec MTP® Elite Female (Non-Pinned)
Connector B US Conec MTP® Elite Female (Non-Pinned)
Polish Type UPC to UPC
Glass Fiber Bend Insensitive Fiber
Fiber Mode OM4 50/125μm
Wavelength 850/1300nm
Fiber Count 12 Fibers
Polarity Type B
Cable Outside Diameter (OD) 3.0mm
Cable Jacket Plenum (OFNP)
Min. Bend Radius (Optical Fiber) 7.5mm
Min. Bend Radius (Fiber Cable) 20/10D (Dynamic/Static)
Connector Durability 500 times
Tensile Strength 80/240N (Long/Short Term)
Insertion Loss ≤0.35dB (0.15dB Typ.)
Return Loss ≥27dB
Attenuation at 850nm ≤2.3dB/km
Attenuation at 1300nm ≤0.6dB/km
Operating Temperature -10 to 60°C (14 to 140℉)
Storage Temperature -10 to 70°C (14 to 158℉)



Features

Superior Workmanship Guarantees Stable Transmission

Bend insensitive fiber paired with high-performance US Conec MTP® connectors delivers reliable connectivity for dense data center and carrier-grade applications.

Multimode APC Endface Provides Exceptional Reliability

The APC end features an 8-degree polished angle to minimize optical reflections and distort the signal quality, meeting the stringent optical surface requirements of IB NDR transceivers.

Fire Safety-Rated in Different Cabling Spaces

OFNR/LSZH combats fire and toxic smoke in riser pathways, while OFNP is designed to prevent flame spread in oxygen-rich plenum spaces.


Professional Testing for Reliable Performance
Rigorous fiber cable production testing ensures the best out-of-the-box installation experience, performance, and durability.

Specifications

HEADING 1HEADING 2
Connector AUS Conec MTP® Elite Female (Non-Pinned)
Connector BUS Conec MTP® Elite Female (Non-Pinned)
Polish TypeUPC to UPC
Glass FiberBend Insensitive Fiber
Fiber ModeOM5 50/125μm
Wavelength850/1300nm
Fiber Count12 Fibers
PolarityType B
Cable Outside Diameter (OD)3.0mm
Cable JacketPlenum (OFNP)
Min. Bend Radius (Optical Fiber)7.5mm
Min. Bend Radius (Fiber Cable)20/10D (Dynamic/Static)
Connector Durability500 times
Tensile Strength80/240N (Long/Short Term)
Insertion Loss≤0.35dB (0.15dB Typ.)
Return Loss≥27dB
Attenuation at 850nm≤2.3dB/km
Attenuation at 1300nm≤0.6dB/km
Operating Temperature-10 to 60°C (14 to 140℉)
Storage Temperature-10 to 70°C (14 to 158℉)
