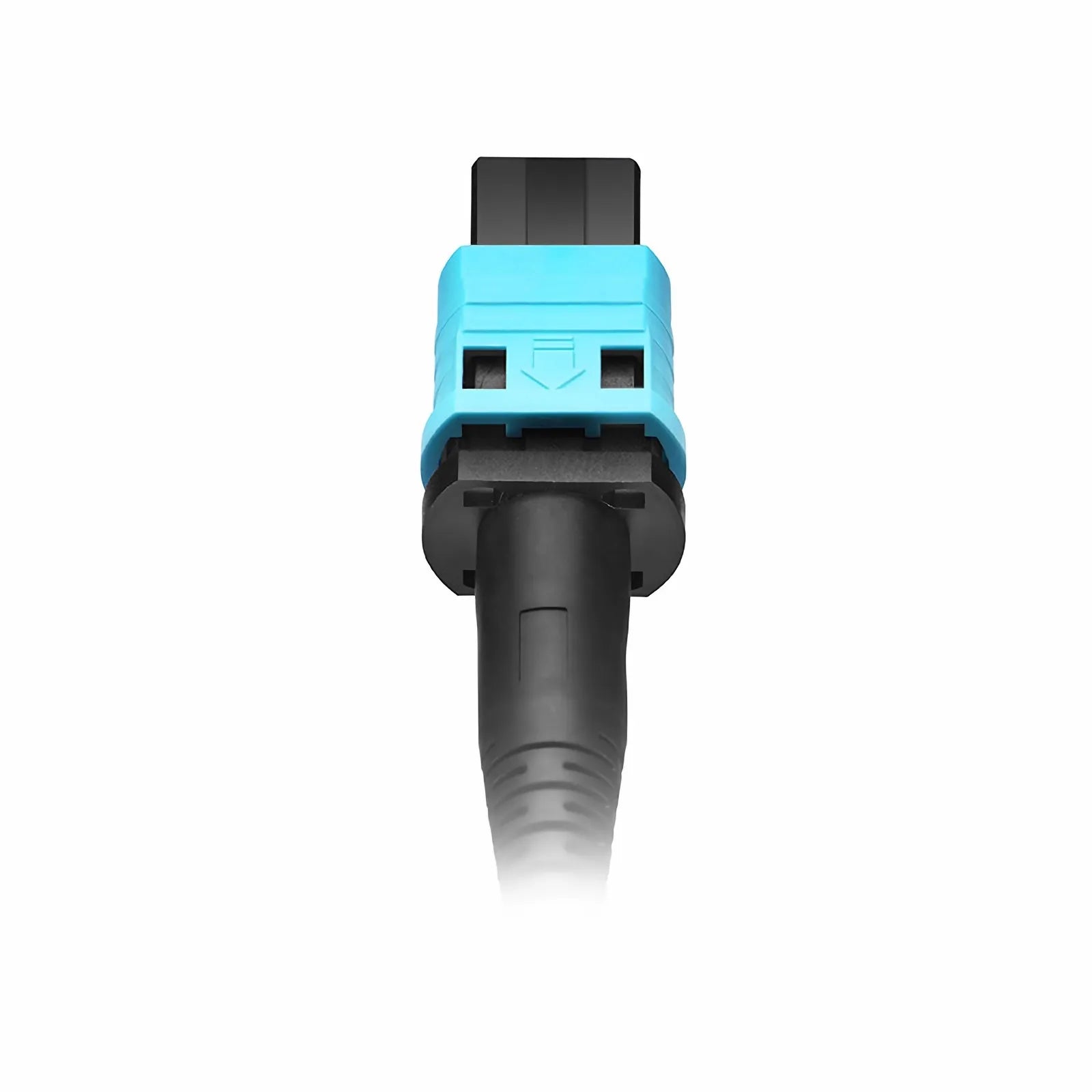

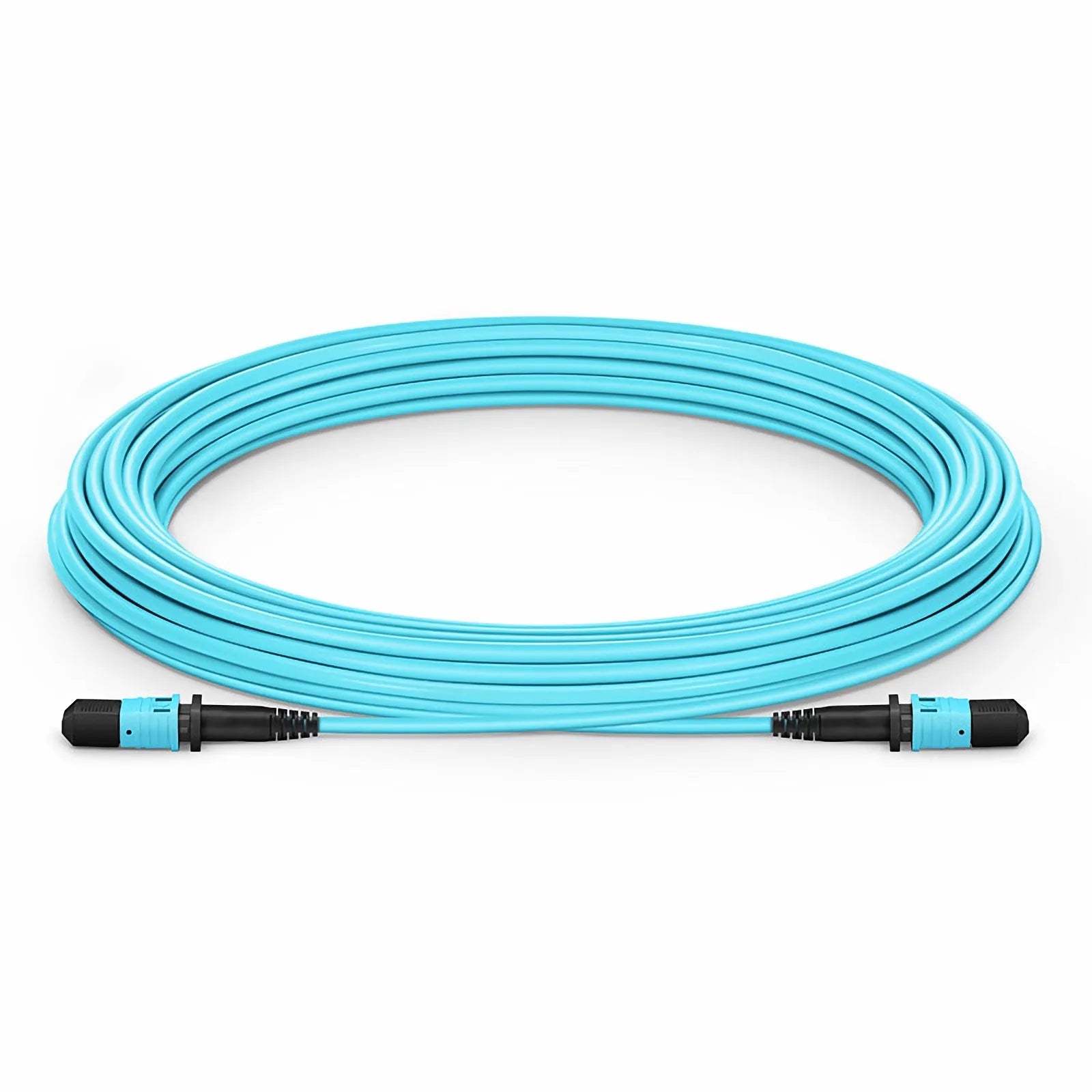

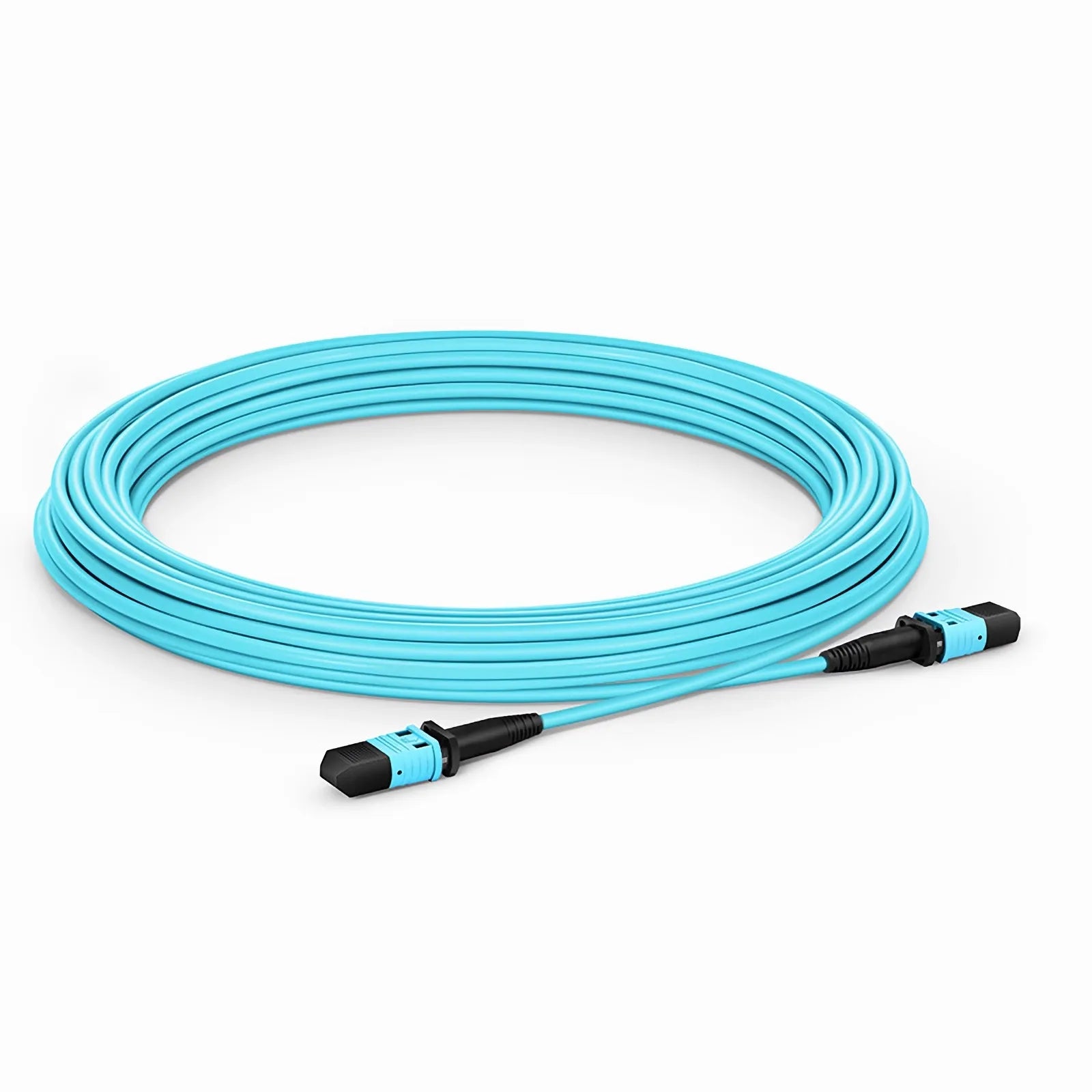

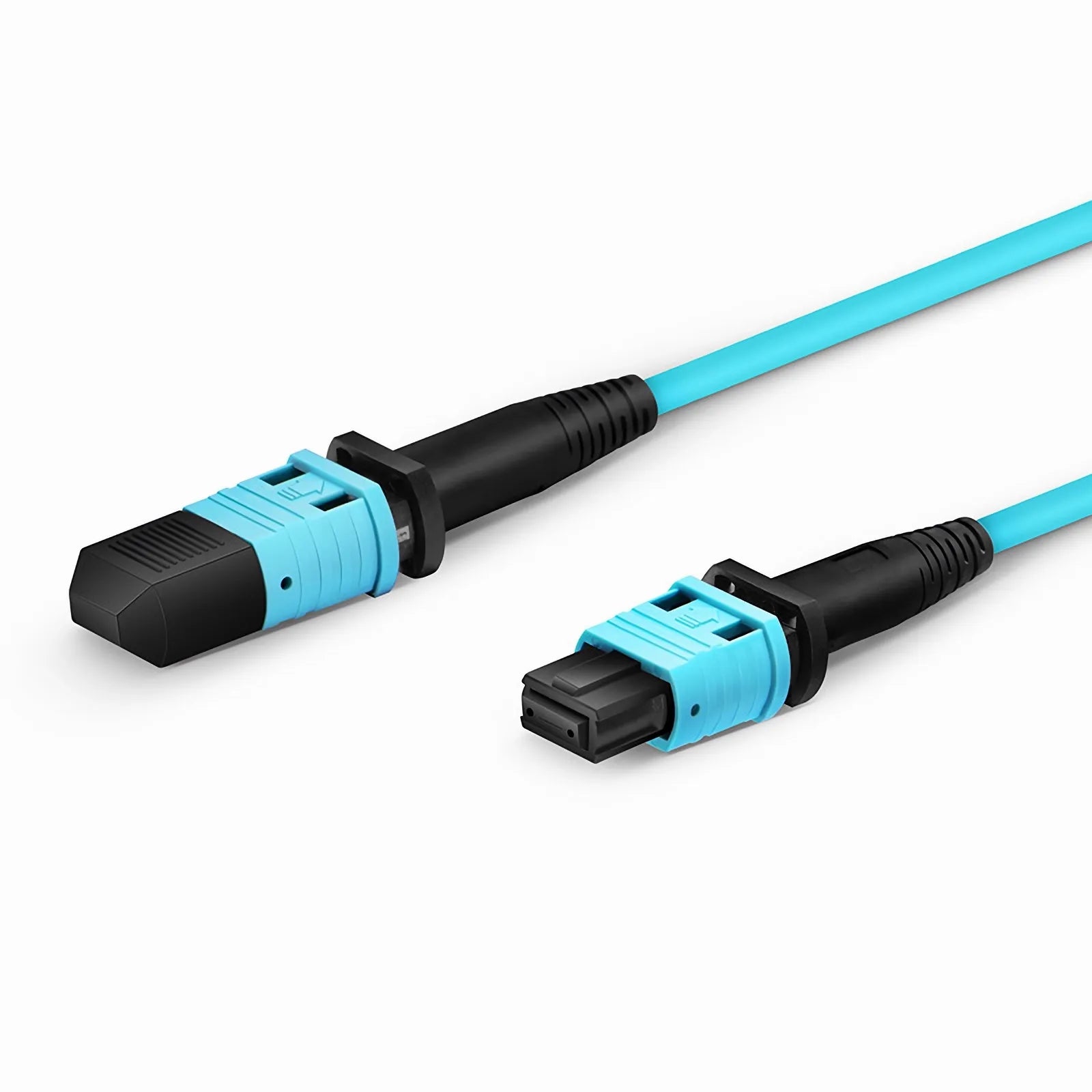

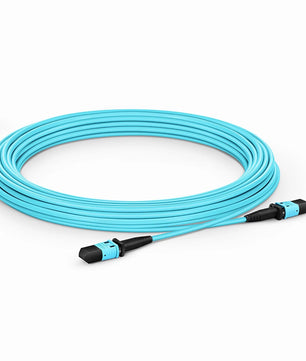

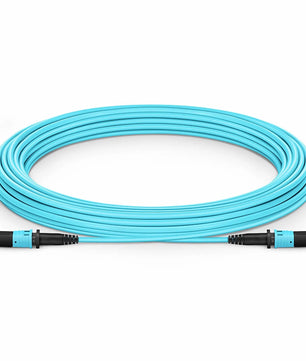

30m (98ft) MPO Jumper, Senko MPO-12 APC (Female) to MPO-12 APC (Female), 8 Fibers, Multimode (OM3), LSZH, 0.35dB Max, Type B
30m (98ft) MPO Jumper, Senko MPO-12 APC (Female) to MPO-12 APC (Female), 8 Fibers, Multimode (OM3), LSZH, 0.35dB Max, Type B
30m (98ft) MPO Jumper, Senko MPO-12 APC (Female) to MPO-12 APC (Female), 8 Fibers, Multimode (OM3), LSZH, 0.35dB Max, Type B
30m (98ft) MPO Jumper, Senko MPO-12 APC (Female) to MPO-12 APC (Female), 8 Fibers, Multimode (OM3), LSZH, 0.35dB Max, Type B
30m (98ft) MPO Jumper, Senko MPO-12 APC (Female) to MPO-12 APC (Female), 8 Fibers, Multimode (OM3), LSZH, 0.35dB Max, Type B
30m (98ft) MPO Jumper, Senko MPO-12 APC (Female) to MPO-12 APC (Female), 8 Fibers, Multimode (OM3), LSZH, 0.35dB Max, Type B
30m (98ft) MPO Jumper, Senko MPO-12 APC (Female) to MPO-12 APC (Female), 8 Fibers, Multimode (OM3), LSZH, 0.35dB Max, Type B
30m (98ft) MPO Jumper, Senko MPO-12 APC (Female) to MPO-12 APC (Female), 8 Fibers, Multimode (OM3), LSZH, 0.35dB Max, Type B
30m (98ft) MPO Jumper, Senko MPO-12 APC (Female) to MPO-12 APC (Female), 8 Fibers, Multimode (OM3), LSZH, 0.35dB Max, Type B
30m (98ft) MPO Jumper, Senko MPO-12 APC (Female) to MPO-12 APC (Female), 8 Fibers, Multimode (OM3), LSZH, 0.35dB Max, Type B

30m (98ft) MPO Jumper, Senko MPO-12 APC (Female) to MPO-12 APC (Female), 8 Fibers, Multimode (OM3), LSZH, 0.35dB Max, Type B

ecom-no-replace-vjYNeAZFqNrrate-electric
(100+ ratings)
  • ecom-no-replace-gudI16uWLKflash0i

    Selling fast! 10 people have this in their carts.

$88.00
{price}% OFF
Order in the next [hour] to get it between [date_start] and [date_end]
Start-EComposer-custom-liquid-pickup
End-EComposer-custom-liquid-pickup
Returns & Exchanges Policy
When you buy directly from us, we want you to be 100% happy with your purchase experience. We hope you love everything you receive from us, but if you’re less than 100% satisfied, you may return or exchange any item(s) within 30 days after your purchase. Please a contact customer service team member if your order is unsatisfactory or doesn’t suit your needs. We want to make it right for you, as quickly and easily as possible
  • Step 1
    Fill out the return info on the back of your order form. Can’t find your order form? Download a copy of the return form. Want to exchange it for a different product? Let us know within 30 days of your purchase.
  • Step 2
    Return the order yourself via USPS, FedEx or any other traceable method. We encourage you to insure your package. Please send it to: Gaiam Attention: Returns 9107 Meridian Way, West Chester, OH 45069
Please allow 14 days for us to receive and process your return. Original shipping and handling fees are not refundable. We'll credit or refund the value of the items returned and any taxes you were charged less the original shipping charges. Please contact Customer Relations for more information regarding our return policies. Credit card adjustments should appear within two billing cycles.

  • Guarantee Safe
    Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Pairs well with

Description

Specifications

Shipping

Return Policies

Product Highlights

  • MPO Connector with Optimal 0.35dB Low IL
  • Bend Insensitive Fiber with 7.5mm Min. Bend Radius
  • LSZH Flame Rating
  • IEC-61754-7 and TIA-604-5 (FOCIS-5)
  • Typically Used for Patching Within a Cabinet
  • Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D



MPO-12 Jumper, F to F, APC, 8F, OM3, LSZH, 0.35dB, Type B

MPO jumpers, allow for the seamless migration to higher data rates in the data center when used in conjunction with our trunk cables. They are typically used for patching within a cabinet. MTP® cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.



Specifications

Connector A MPO Female (Non-Pinned)
Connector B MPO Female (Non-Pinned)
Fiber Mode
 OM3 50/125μm
Wavelength
850/1300nm
40/100G Ethernet Distance 150m at 850nm
10G Ethernet Distance 400 m at 850nm
Polish Type
APC to APC
Minimum Bend Radius
7.5mm
Insertion Loss
≤ 0.35dB (0.15 dB Typ.)
Return Loss
≥ 20dB
Connector Durability 500 times
Tensile Strength 80/240N (Long/Short Term)
Insertion Loss ≤0.35dB
Return Loss ≥27dB
Attenuation at 850nm
 ≤2.3dB/km
Attenuation at 1300nm ≤0.6dB/km
Operating Temperature -60 to 85°C (-76 to 185℉)
Storage Temperature -60 to 85°C (-76 to 185℉)

Connectivity Solutions

10G-10G Structured Fiber Cabling Accomplished by Deploying MPO Cables, Fiber Patch Cables and FHD™ Series Cable Management

Features



0.35 dB Ultra Low IL Connector

The MPO connectors utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure a max. 0.35 dB and typical lower than 0.15 dB IL.

Bend Insensitive Fiber

Bend Insensitive Fiber is designed to withstand tight bends and challenging cabling routes with substantially less signal loss than conventional multimode fiber.

Low-smoke-zero-halogen Rated

Jacketed with compounds that emit limited smoke and no halogen when exposed to high heat sources. This LSZH cable is designed and tested to conform to IEC-60332-1 and IEC-61034.

7.5 mm Minimum Bend Radius



With BIF, our cable is designed for improved bend performance in reduced-radius applications such as residential or office environments which have less bend sensitivity.


Specifications

HEADING 1HEADING 2
Connector AUS Conec MTP® Elite Female (Non-Pinned)
Connector BUS Conec MTP® Elite Female (Non-Pinned)
Polish TypeUPC to UPC
Glass FiberBend Insensitive Fiber
Fiber ModeOM5 50/125μm
Wavelength850/1300nm
Fiber Count12 Fibers
PolarityType B
Cable Outside Diameter (OD)3.0mm
Cable JacketPlenum (OFNP)
Min. Bend Radius (Optical Fiber)7.5mm
Min. Bend Radius (Fiber Cable)20/10D (Dynamic/Static)
Connector Durability500 times
Tensile Strength80/240N (Long/Short Term)
Insertion Loss≤0.35dB (0.15dB Typ.)
Return Loss≥27dB
Attenuation at 850nm≤2.3dB/km
Attenuation at 1300nm≤0.6dB/km
Operating Temperature-10 to 60°C (14 to 140℉)
Storage Temperature-10 to 70°C (14 to 158℉)
