MTP® Jumper, MTP®-12 UPC (Female) to MTP®-12 UPC (Female), 12 Fibers, Multimode (OM3), Plenum (OFNP), 0.35dB Max, Type A
MTP® Jumper, MTP®-12 UPC (Female) to MTP®-12 UPC (Female), 12 Fibers, Multimode (OM3), Plenum (OFNP), 0.35dB Max, Type A
MTP® Jumper, MTP®-12 UPC (Female) to MTP®-12 UPC (Female), 12 Fibers, Multimode (OM3), Plenum (OFNP), 0.35dB Max, Type A
MTP® Jumper, MTP®-12 UPC (Female) to MTP®-12 UPC (Female), 12 Fibers, Multimode (OM3), Plenum (OFNP), 0.35dB Max, Type A
MTP® Jumper, MTP®-12 UPC (Female) to MTP®-12 UPC (Female), 12 Fibers, Multimode (OM3), Plenum (OFNP), 0.35dB Max, Type A
MTP® Jumper, MTP®-12 UPC (Female) to MTP®-12 UPC (Female), 12 Fibers, Multimode (OM3), Plenum (OFNP), 0.35dB Max, Type A
MTP® Jumper, MTP®-12 UPC (Female) to MTP®-12 UPC (Female), 12 Fibers, Multimode (OM3), Plenum (OFNP), 0.35dB Max, Type A
MTP® Jumper, MTP®-12 UPC (Female) to MTP®-12 UPC (Female), 12 Fibers, Multimode (OM3), Plenum (OFNP), 0.35dB Max, Type A

MTP® Jumper, MTP®-12 UPC (Female) to MTP®-12 UPC (Female), 12 Fibers, Multimode (OM3), Plenum (OFNP), 0.35dB Max, Type A

ecom-no-replace-vjYNeAZFqNrrate-electric
(100+ ratings)
  • ecom-no-replace-gudI16uWLKflash0i

    Selling fast! 10 people have this in their carts.

$69.00
{price}% OFF
Order in the next [hour] to get it between [date_start] and [date_end]
Length
  • 5m(16ft)
  • 10m(33ft)
Start-EComposer-custom-liquid-pickup
End-EComposer-custom-liquid-pickup
Returns & Exchanges Policy
When you buy directly from us, we want you to be 100% happy with your purchase experience. We hope you love everything you receive from us, but if you’re less than 100% satisfied, you may return or exchange any item(s) within 30 days after your purchase. Please a contact customer service team member if your order is unsatisfactory or doesn’t suit your needs. We want to make it right for you, as quickly and easily as possible
  • Step 1
    Fill out the return info on the back of your order form. Can’t find your order form? Download a copy of the return form. Want to exchange it for a different product? Let us know within 30 days of your purchase.
  • Step 2
    Return the order yourself via USPS, FedEx or any other traceable method. We encourage you to insure your package. Please send it to: Gaiam Attention: Returns 9107 Meridian Way, West Chester, OH 45069
Please allow 14 days for us to receive and process your return. Original shipping and handling fees are not refundable. We'll credit or refund the value of the items returned and any taxes you were charged less the original shipping charges. Please contact Customer Relations for more information regarding our return policies. Credit card adjustments should appear within two billing cycles.

  • Guarantee Safe
    Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Pairs well with

Description

Specifications

Shipping

Return Policies

Product Highlights

  • US Conec MTP® Connector with Optimal 0.35dB Low IL
  • Bend Insensitive Fiber with 7.5mm Min. Bend Radius
  • OFNP Fire Safety-Rated for Use in Plenum Air Spaces

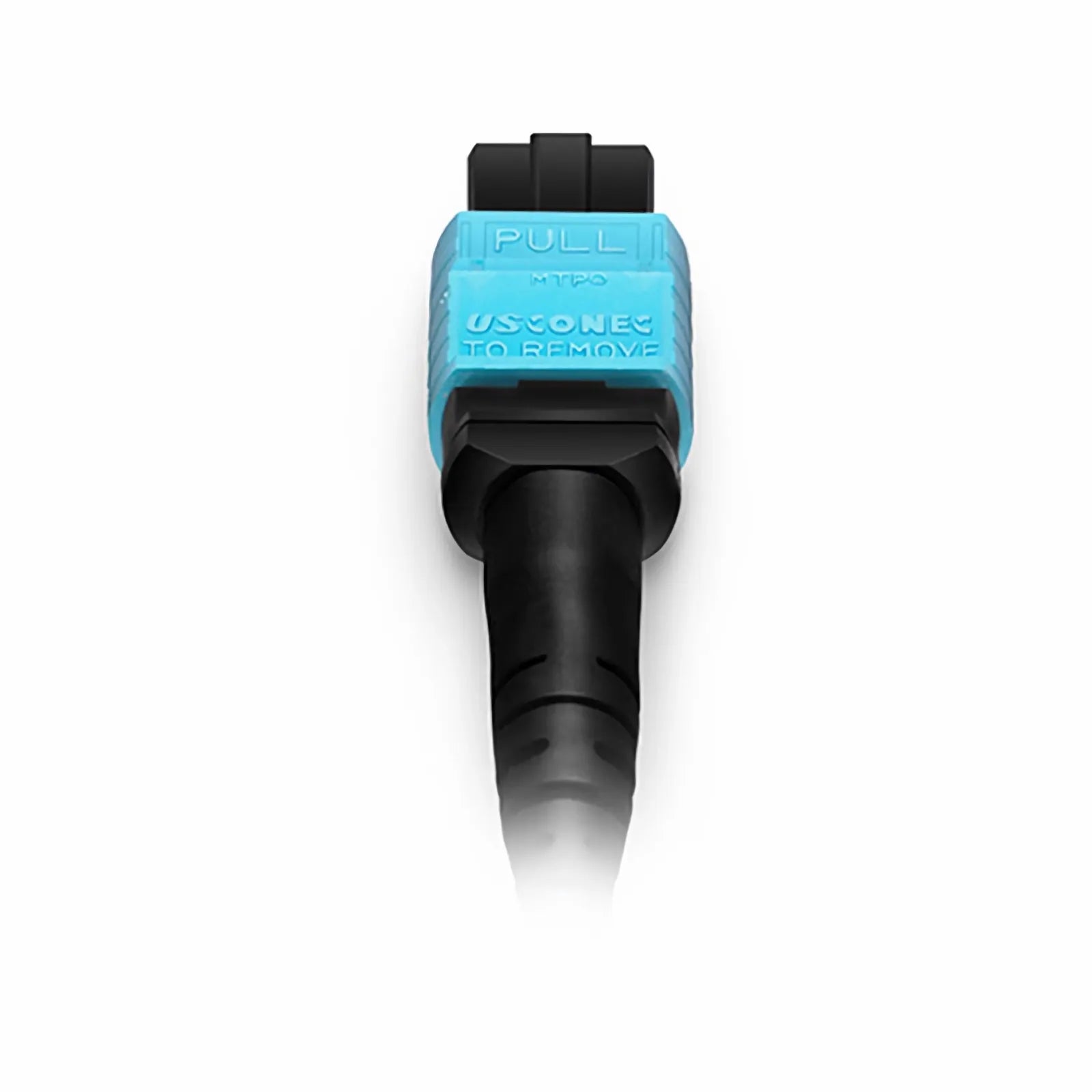

  • Color-Coded Connector Boots for Easy Identification
  • Typically Used for Patching Within a Cabinet

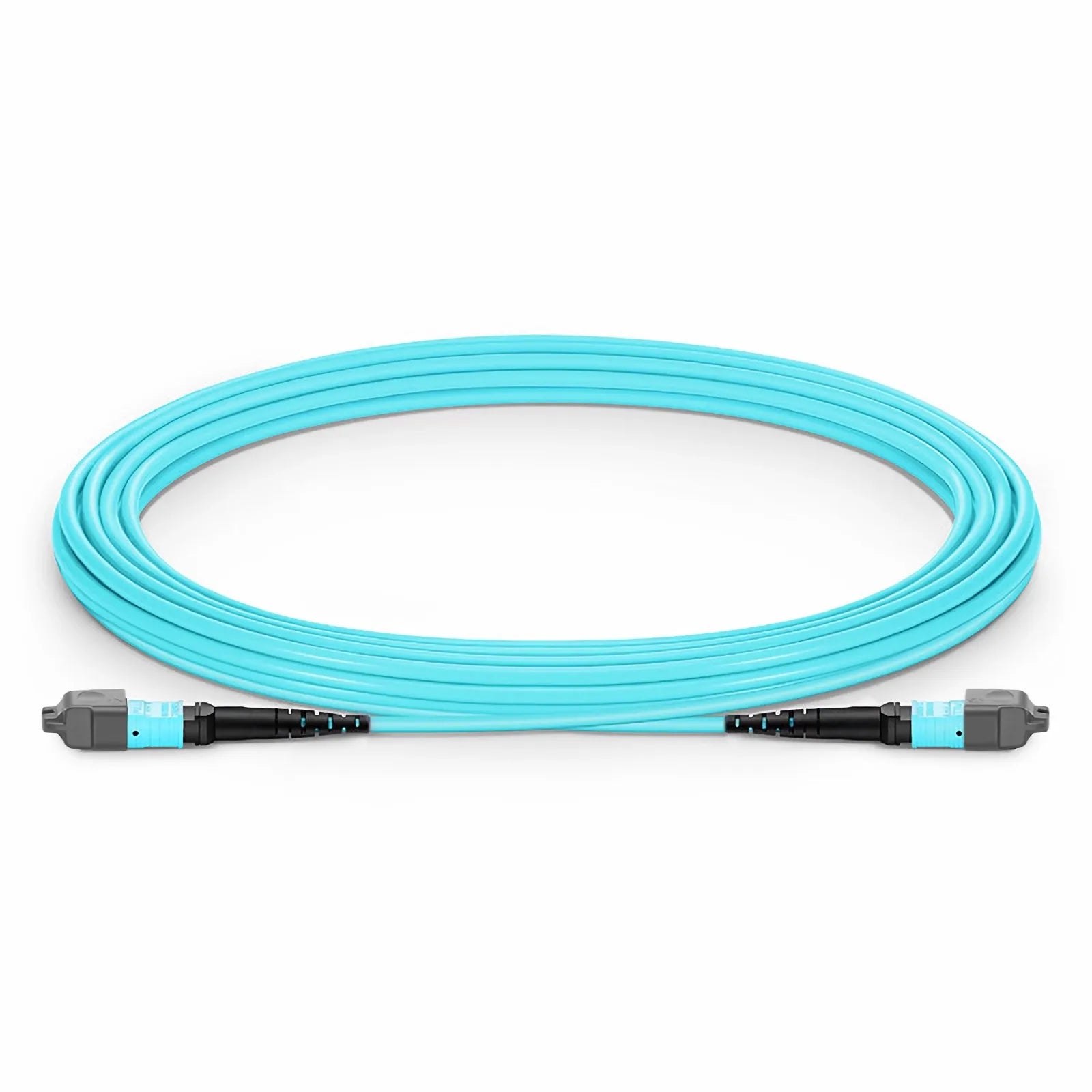

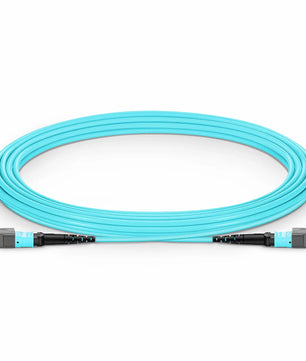

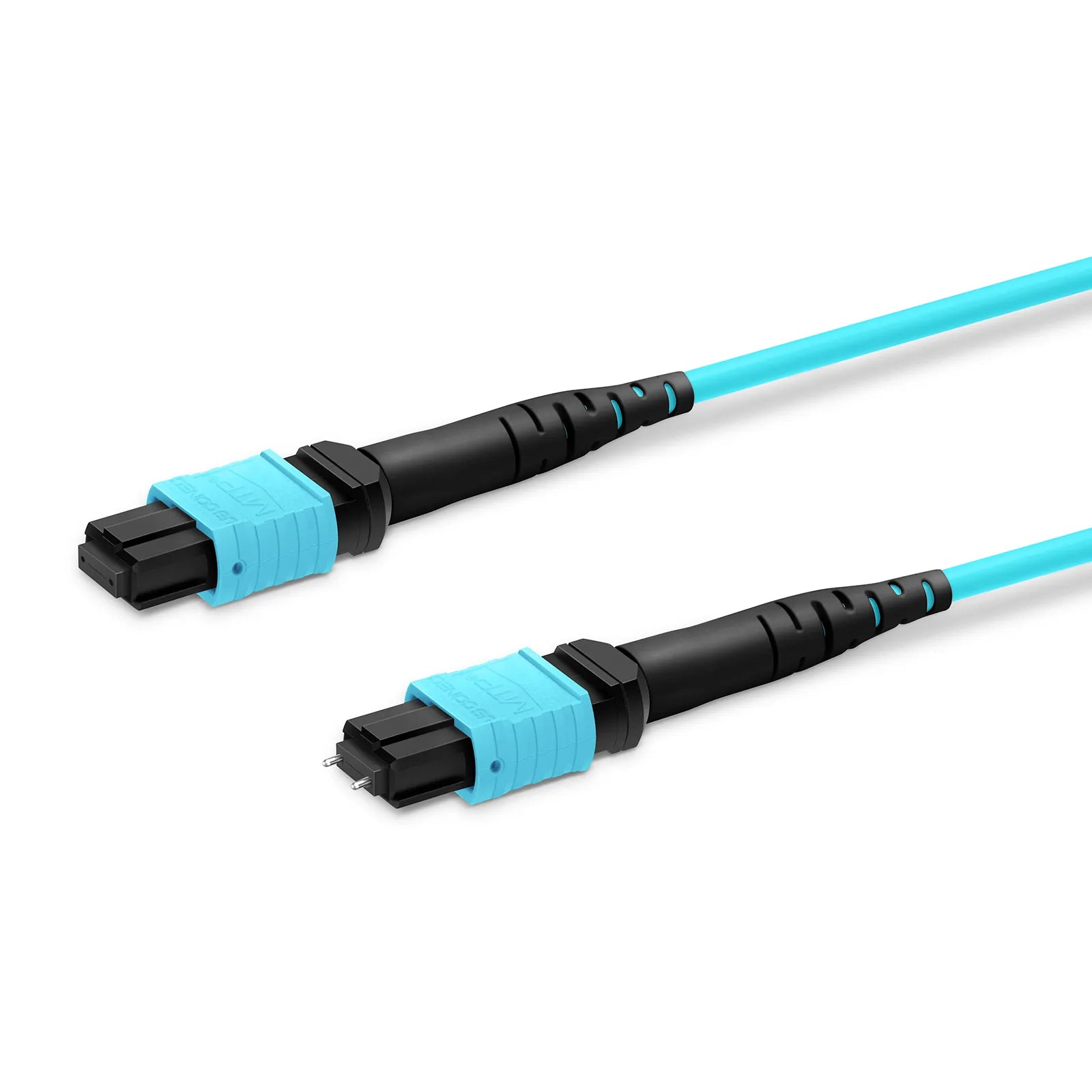

MTP®-12 Jumper, F to F, UPC, 12F, OM3, OFNP, 0.35dB, Type A

MTP® jumpers, allow for the seamless migration to higher data rates in the data center when used in conjunction with our trunk cables. They are typically used for patching within a cabinet. MTP® cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

Due to the MTP®-12 also supporting MTP®-8 fiber systems, it is also ideal for 8-fiber parallel multimode optical transceiver applications, such as 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics connection.c



Specifications

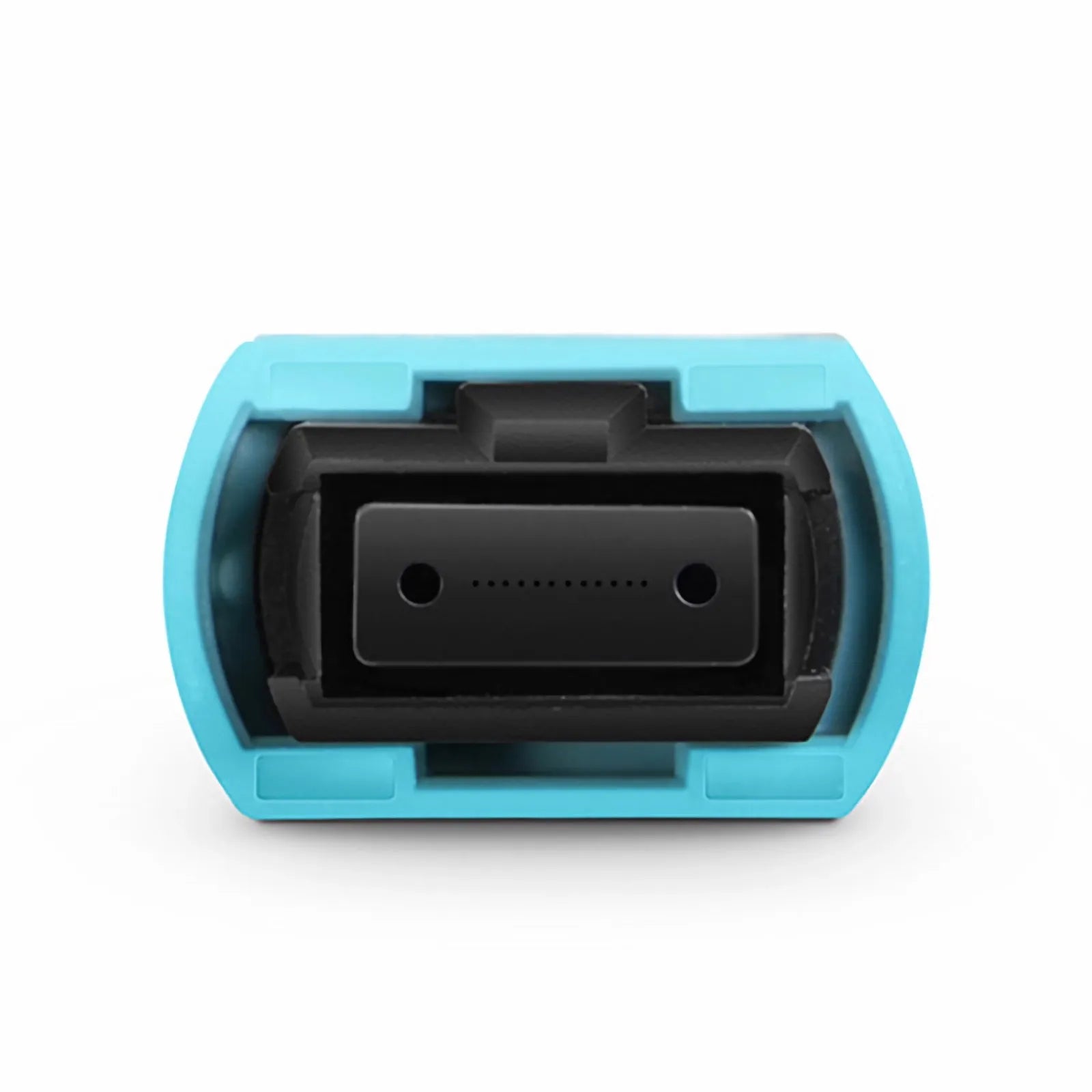

Connector A US Conec MTP® Female (Non-Pinned)
Connector B US Conec MTP® Female (Non-Pinned)
Polish Type UPC to UPC
Glass Fiber Bend Insensitive Fiber
Fiber Mode OM3 50/125μm
Wavelength 850/1300nm
40/100G Ethernet Distance
150m at 850nm
10G Ethernet Distance 400m at 850nm
Min. Bend Radius  7.5mm
Jacket OD
3.0mm
Installation Tensile Loadc 66N
Tensile Strength 80/240N (Long/Short Term)
Insertion Loss ≤0.35dB
Return Loss ≥27dB
Attenuation at 850nm ≤2.3dB/km
Attenuation at 1300nm ≤0.6dB/km
Operating Temperature -10 to +70°C (14 to 158℉)
Storage Temperature -40 to +85°C (-40 to 185℉)



Features

Superior Workmanship Guarantees Stable Transmission

Bend insensitive fiber paired with high-performance US Conec MTP® connectors delivers reliable connectivity for dense data center and carrier-grade applications.

Plenum Jacket, The Highest Fire Safety-Rated

The OFNP (plenum) jacket is safe for plenum air spaces and compatible with both unrated and OFNR (riser) rated applications.



Color-Coded Connector Boots for Easy Identification

The MTP® Base 8/12/24 offers various fiber count options to meet different deployment requirements.

Parallel Application

Duplex Application
High Density Cabling for Various Environments
Minimize waste, optimize cable management, and speed deployment for lower installation costs.


Specifications

HEADING 1HEADING 2
Connector AUS Conec MTP® Elite Female (Non-Pinned)
Connector BUS Conec MTP® Elite Female (Non-Pinned)
Polish TypeUPC to UPC
Glass FiberBend Insensitive Fiber
Fiber ModeOM5 50/125μm
Wavelength850/1300nm
Fiber Count12 Fibers
PolarityType B
Cable Outside Diameter (OD)3.0mm
Cable JacketPlenum (OFNP)
Min. Bend Radius (Optical Fiber)7.5mm
Min. Bend Radius (Fiber Cable)20/10D (Dynamic/Static)
Connector Durability500 times
Tensile Strength80/240N (Long/Short Term)
Insertion Loss≤0.35dB (0.15dB Typ.)
Return Loss≥27dB
Attenuation at 850nm≤2.3dB/km
Attenuation at 1300nm≤0.6dB/km
Operating Temperature-10 to 60°C (14 to 140℉)
Storage Temperature-10 to 70°C (14 to 158℉)
